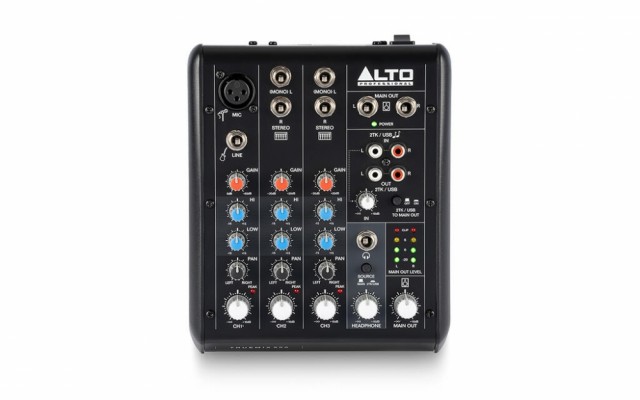

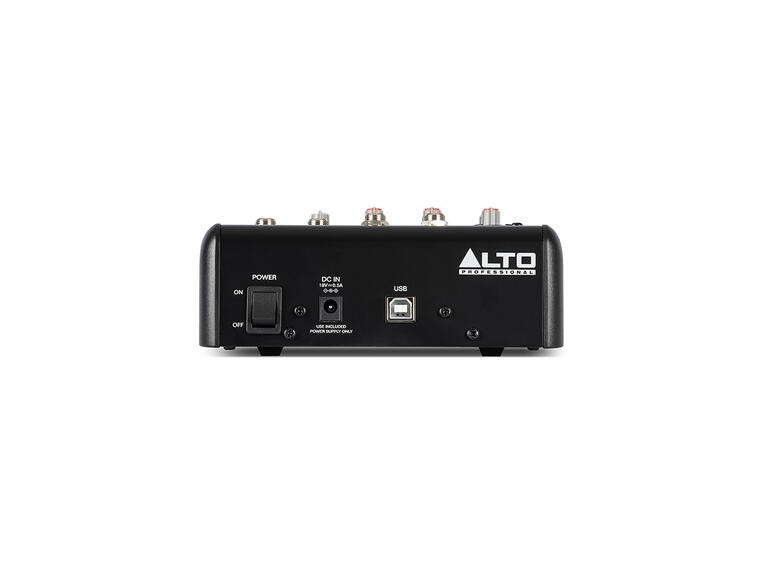

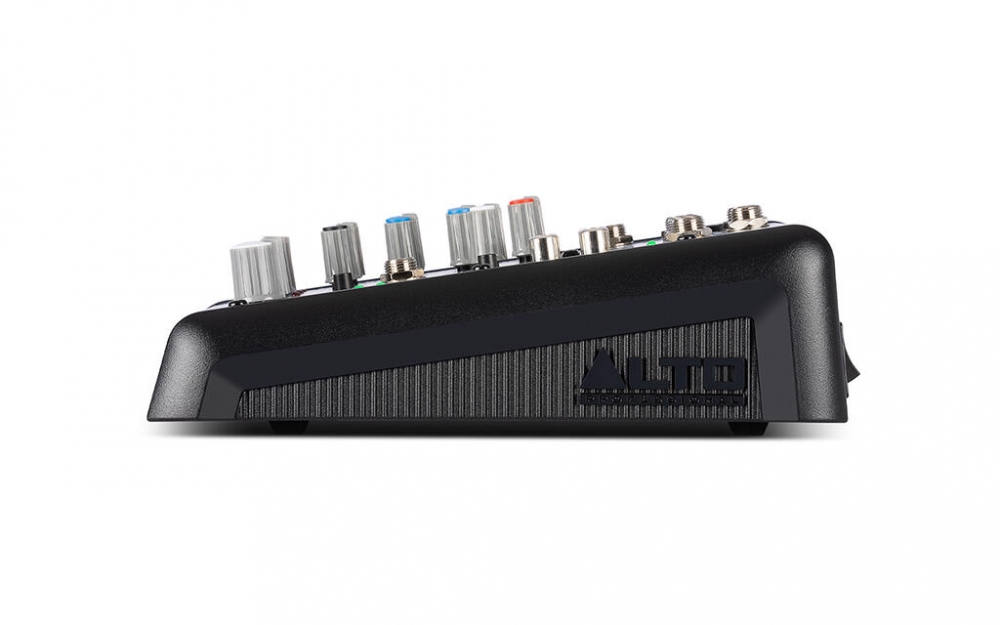

Alto TrueMix 500 Mixer

The Alto Professional TrueMix 500 is a portable mixer with a built-in stereo USB audio interface that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing.

PrisNOK1 195,00 inkl. mva.
På lager
Ønskeliste
Artikkelnr.:
110997
  • Produktinfo
  • Produktanmeldelser (0)

Simple-to-Use Analog Audio Mixing for Any Application

There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The Mic Input Channel offers an XLR input that’s great for connecting a dynamic mic. This channel also has a balanced ¼” line input for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced ¼” TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with color coded knobs that make it easy to dial in your perfect sound when operating in low-light situations. Connecting the TrueMix 500 to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 500 is your perfect companion for no-nonsense audio mixing and recording on the go.

TECH INFORMATION

Frequency Response

All inputs: 20 Hz – 22 kHz (±1 dB)

THD+N (Total Harmonic Distortion)

All inputs: < 0.005% (@ 4 dBu, 1 kHz)

Gain Range

Mic inputs (Channel 1): 0 – 44 dB

Line input (Channel 1): 12 – 30 dBu

Line inputs (Channels 2/3): 0 dBu

Max Voltage Gain

74 dB (Mic Input to Main Out and 2TK Output)

80 dB (Mic Input to Phones Output)

30 dB (Line Input to Main Out)

SNR (Signal-to-Noise ratio)

All inputs: > 110 dBu

Impedance

Mic inputs: 3.9 kΩ

All other inputs: > 10 kΩ

2TK output: 1 kΩ

All other outputs: 120 Ω

Crosstalk

Adjacent inputs: < -80 dB @ 1 kHz

Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right)

Equalization

High: ±15 dB @ 12 kHz

Low: ±15 dB @ 80 Hz

Connectors

(2) 1/4” (6.35 mm) TRS outputs

(2) 1/4” (6.35 mm) TRS stereo L/R inputs

(1) 1/4" (6.35 mm) TRS headphone output

(1) 1/4" (6.35 mm) TRS mono input

(1) XLR input

(1) Stereo RCA L/R input

(1) Stereo RCA L/R output

(1) USB type-B input

(1) DC power input

Controls

(1) Power switch

(6) Volume control knobs (1 per input and output)

(3) Gain control knobs (1 per channel)

(3) EQ Hi control knobs (1 per channel)

(3) EQ Low control knobs (1 per channel)

(3) Stereo pan control Knobs (1 per channel)

(2) Locking switch buttons

Indicators

(1) Power LED, (3) Peak LEDs, (8) Main Out meter LEDs

Main Mix

Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output

2TK output: (2) unbalanced RCA, 0 dBu max output

Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω

Power

Connection: DC

Voltage: 18V, 500 mA

Consumption: 9 W

Dimensions

(width x depth x height)

6.3" x 7.6" x 2.6"

159.5 mm x 193 mm x 66 mm

Weight

2.0 lbs.

0.9 kg
